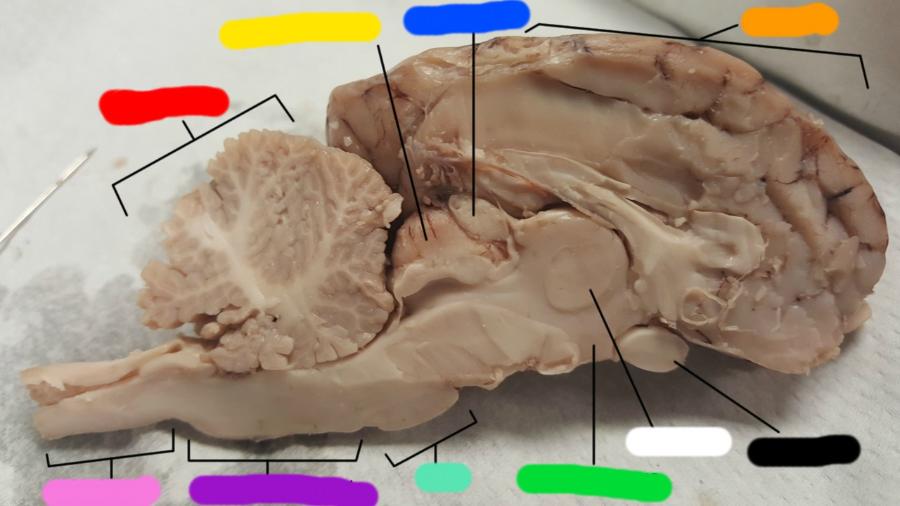

Name region highlighted in red
Cerebellum
Name region highlighted in yellow (include if its superior or inferior)
superior colliculi
Name organ highlighted in blue
pineal gland
name region highlighted in orange
cerebrum
name region highlighted in pink
spinal cord
name region highlighted in purple
medulla oblongata
name region highlighted in mint green
pons
name region highlighted in green
hypothalamus
name region highlighted in white
thalamus
name region highlighted in black
Optic chiasma

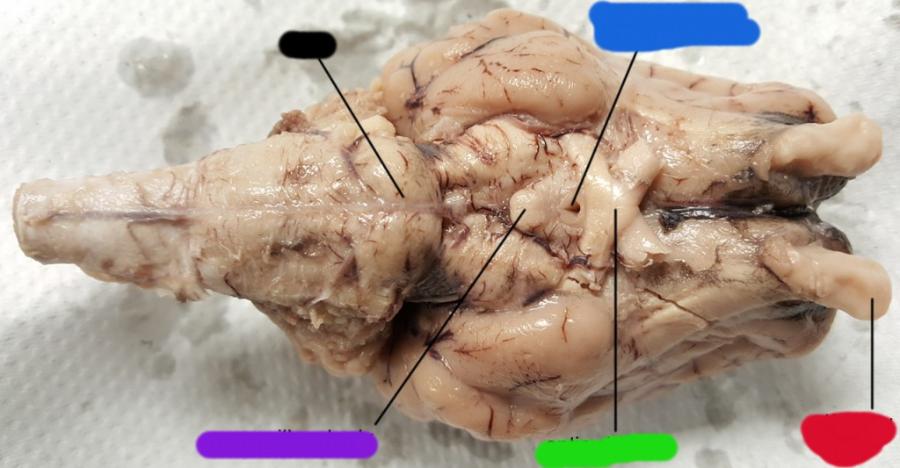

Name the structure highlighted in black
pons
Name the structure highlighted in blue
infundibulum
name the structure highlighted in purple
mammillary body
name the structure highlighted in green
optic chiasma
name the structure highlighted in red. What cranial nerve synapses here? Include the number.
olfactory bulb; Olfactory nerve (CN 1)

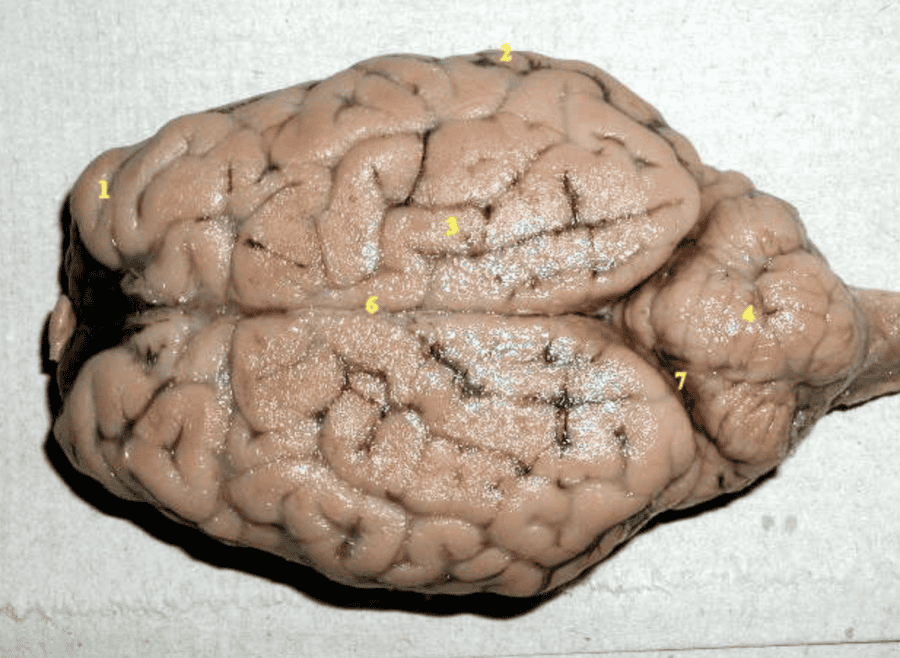

Identify the structure on the cerebellum labeled 4
vermis
What is a Vermis?
a narrow structure in between both sides of the cerebellum
Identify the cleft labeled 6
Longitudinal fissure
Identify the cleft labeled 7
Transverse Fissure

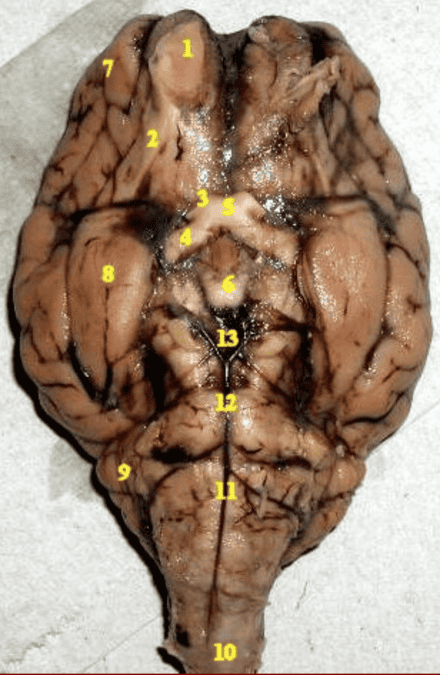

Identify the structure labeled 1
Olfactory bulb
Identify the structure labeled 2
Olfactory tract
Identify the structure labeled 3
Optic nerve
Identify the structure labeled 4
optic tract
Identify the structure labeled 5
optic chiasma
Identify the structure labeled 9
cerebellar hemisphere
Identify the region labeled 11
medulla oblongata
Identify the region labeled 12
pons
Identify the region labeled 13
midbrain
Name the number of the general area where the epithalamus is located
15

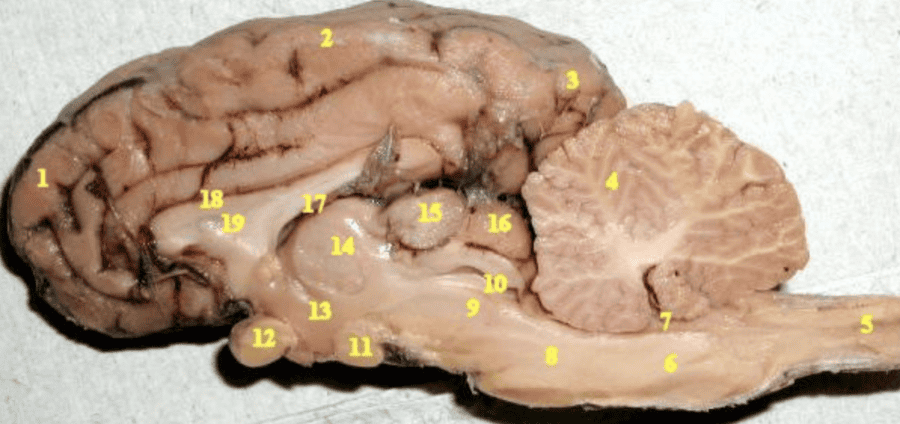

Identify the structure labeled 4
Arbor Vitae
Name the number of the general area where the diencephalon is located
14
Identify the space labeled 7
fourth ventricle
Identify the structure labeled 9
midbrain
Identify the space labeled 10
Cerebral aquaduct
Identify the structure labeled 17
fornix
Identify the structure labeled 18
Corpus callosum
Identify the structure labeled 19
septum pellucidum
Identify the space lateral to structure 19.
lateral ventricle
What is the outermost membrane that covers the brain and spinal cord?
Dura Mater

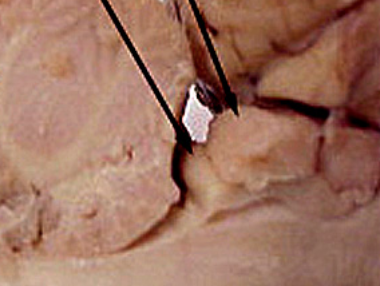

Name the whole structure the arrows pointing to. Identify specifically what the arrows are pointing to.
Corpora Quadrigemina;
(left) Inferior colliculi
(right) Superior colliculi

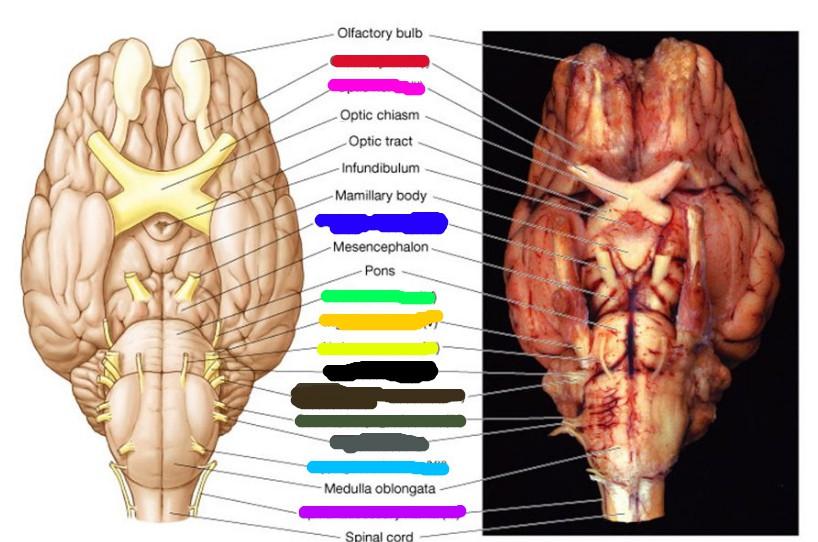

Name the cranial nerve and number highlighted red
Olfactory nerve (CN 1)
Name the cranial nerve and number highlighted pink
Optic nerve (CN 2)
Name the cranial nerve and number highlighted dark blue
Oculomotor nerve (CN 3)
Name the cranial nerve and number highlighted light green
Trochlear nerve (CN 4)
Name the cranial nerve and number highlighted orange
Trigeminal nerve (CN 5)
Name the cranial nerve and number highlighted yellow
Abducens Nerve (CN 6)
Name the cranial nerve and number highlighted black
Facial nerve (CN 7)
Name the cranial nerve and number highlighted brown
Vestibulocochlear nerve (CN 8)
Name the cranial nerve and number highlighted dark green
Glossopharyngeal nerve (CN 9)
Name the cranial nerve and number highlighted grey
vagus nerve (CN 10)
Name the cranial nerve and number highlighted light blue
accessory nerve (CN 11)
Name the cranial nerve and number highlighted purple
Hypoglossal nerve (CN 12)
Identify what the arrows are pointing to on the cerebellum.
folia
What is folia?
the narrow gyri of the cerebellar cortex

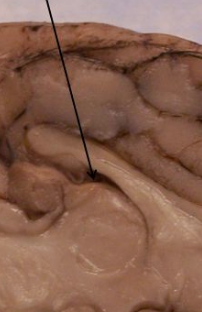

Identify the space the arrow is pointing to
Third ventricle
What space is the choroid plexus located in?
Located in the third ventricle

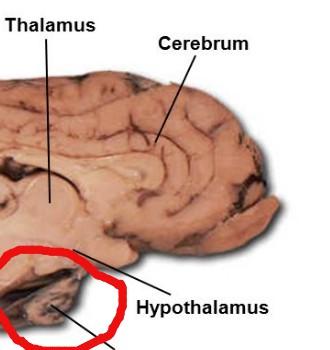

Identify the organ circled
Pituitary gland
Identify the structure circled
Central Canal
What are the probes point to?
Cerebral Peduncles

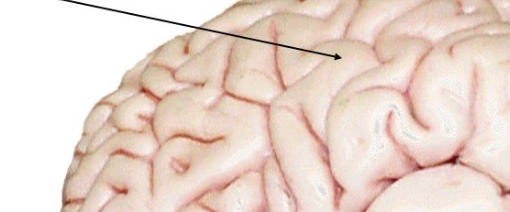

What is the arrow pointing to?
Gyri

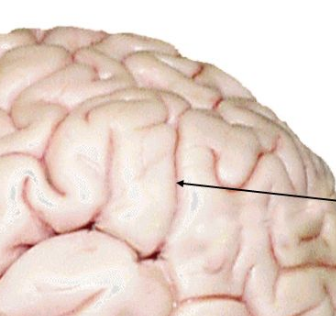

What is the arrow pointing to?
Sulci
