Label the skeletal system. Anterior view.
- Orbit
- Cervical vertebrae
- =
- Rib cage
- Xiphoid process
- Floating ribs
- Lumbar vertebrae
- Pelvis
- Sacrum
- Coccyx
- Ischium
- =
- Pubic arch
- Nasal
- Alveolar margins
- Mental
- Clavicle
- Sternum
- Humerous
- =
- Radius
- Ulna
- Manus
- Digitals (phalanges)
- Femur
- Patella
- Tibia
- Fibula
- Tarsal
Label the skeletal system for the skull. Anterior view.
- Temporal bone
- Mandible
- Mental
- Frontal
- Nasal bone
- Lacrimal bone
- Optic canal (orbit)
- Sphenoid bone
- Zygomatic bone
- Vomer
- Maxilla
- Alveolar margins
- Alveolar margins
Label the skeletal system for the skull. Lateral view.
- Parietal
- Temporal
- Lamboid structure
- Occipital
- External auditory canal
- Mastoid process
- Mandibular ramus
- Mandible
- Mental
- Coronal structure
- Frontal
- Sphenoid
- Ethmoid bone
- Nasal bone
- Lacrimal bone
- Zygomatic bone
- Maxilla
- Zygomatic process of temporal bone

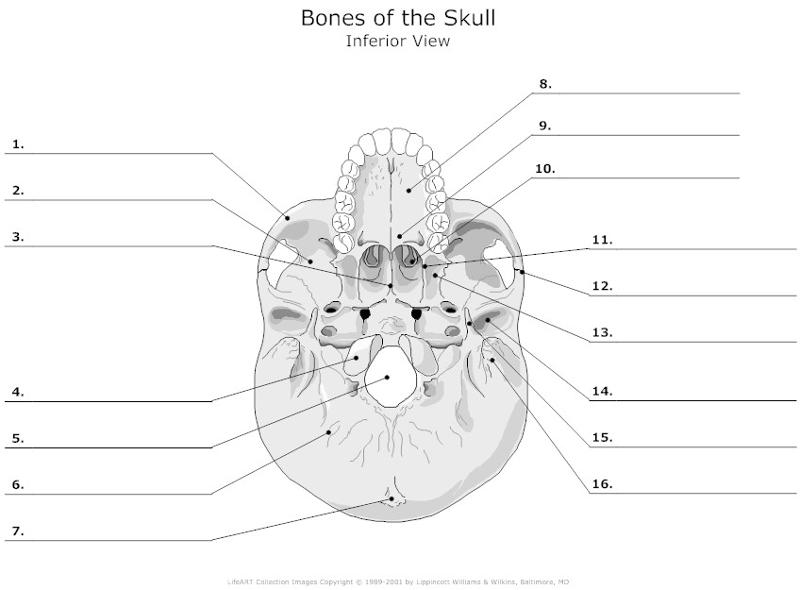

Label the skeletal system for the skull. Inferior view.
- Zygomatic bone
- Sphenoid bone
- Vomer
- ====
- Foramen magnum
- ====
- Occipital bone
- Maxilla
- Palatine bone
- ====
- ====
- Temporal bone
- ===
- ===
- ===
- ====
Label the skeletal system for the scapula. Posterior & Anterior view.
- ====
- ===
- ===
- ===
- ===
- ===
- ====
- ====
- ====
- ===
- ====
- ===
- ===
Label the skeletal system for the rib cage. Anterior & Posterior view.
- Cervical vertebrae
- Sternum
- =
- Sternal angle
- =
- =
- Body
- Xiphoid process
- =
- True ribs
- False ribs
- Floating ribs
- =

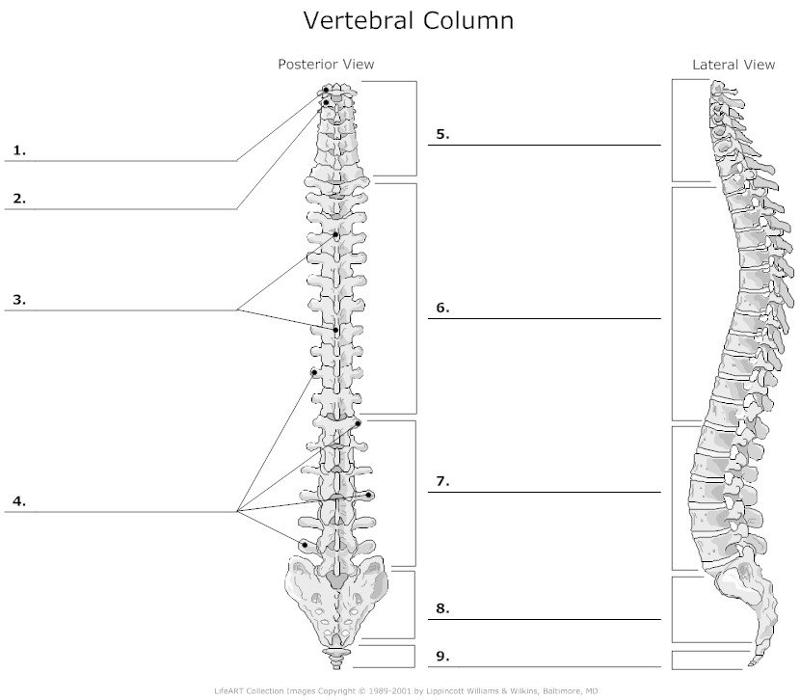

Label the skeletal system for the vertebral column. Posterior & Lateral view.
- Occipital bone
- =
- =
- Vertebra prominens
- Cervical (C1-C7)
- Thoracic (T1-T12)
- Lumbar (L1-L5)
- Sacrum (S1-S5)
- Coccyx (4)
Label the skeletal system for the pelvis. Anterior view.
- iliac crest
- Tubercle of iliac crest
- Anterior superior iliac spine
- Ischial spine
- Superior pubic ramus
- Pubic tubercle
- Inferior pubic ramus
- Inferior pubic ramus
- Sacroiliac joint
- Wing of ilium
- Sacroiliac joint
- Sacrum promontory
- Sacrum
- Pectineal line
- Coccyx
- Obturator foramen
- Pubic tubercle
- Pubic arch / Symphysis pubis
Label the skeletal system for the hip joint. Anterior view.
- =
- Pubis
- ilium
- =
- =
- =
- Femur

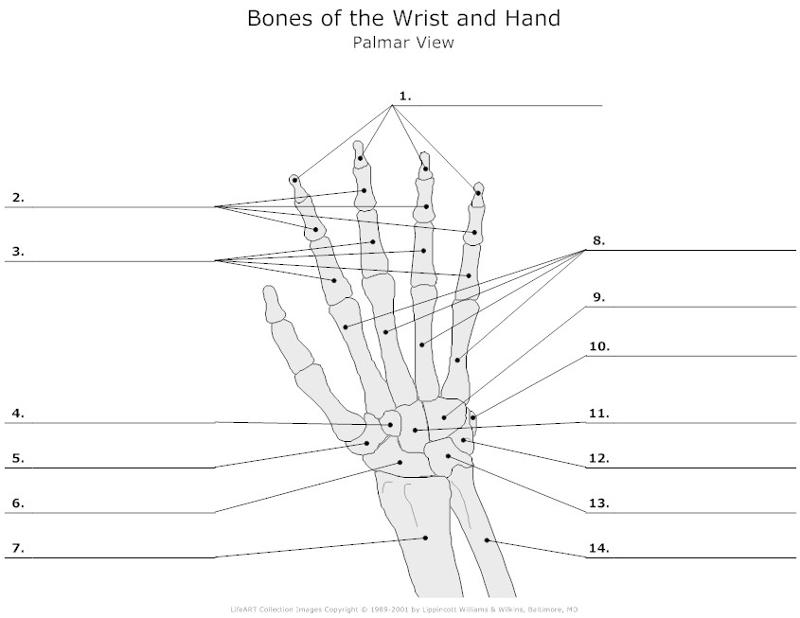

Label the skeletal system for the manus. Anterior view.
- Distal phalanges (phalanx)
- Middle phalanges (phalanx)
- Proximal phalanges (phalanx)
- Trapezoid
- Trapezium
- Scaphoid
- Radius
- Metacarpals
- Hamate
- Pisiform
- Capitate
- Triquetrum
- Lunate
- Ulna
Label the skeletal system for the pedal. Anterior view.
- Metatarsals
- Medial, intermediate, lateral cuneiform
- Navicular
- Distal, middle, proximal phalanges
- Cuboid
- Talus
- Calcaneus
Label the skeletal system for the knee joint. Lateral view.
- Synovial membrane
- Femur
- Lateral condyle
- Patella
- Cartilage
- Fibular
- Tibia
Label the skeletal system for the leg. Anterior view.
- Fibula
- =
- Patella
- Femur
- =
- =
- Tibia
- Tarsal
Label the skeletal system for the lumbar vertebrae. Superior view.
- Spinous process
- Transverse process
- Pedicle
- Vertebral foramen
- Vertebral body
- Pedicle
- Lamina
- N/A
What is a compact bone?
Provides protection and support.
What is a spongy bone?
Strong but lightweight, provides tissue support.
What are osteoprogenitor cells?
Bone stem cells, can change into other types of cells.
What are osteoblasts cells?
Bone building cells that secrete matrix.
What are osteocytes cells?
Mature bone cells that contribute to bone homeostasis. Can turn back into an osteoblast if needed.
What are osteoclasts cells?
Remodel bones and cause them to release calcium.
What are some examples of the axial skeleton?
Vertebral column(26), thorax, skull(22), hyoid, auditory ossicles(6).
What are some examples of the appendicular skeleton?
Upper limbs (X2), pelvic girdle, lower limbs (X2), pectorals (shoulders).
There are approximately 206 bones in the body, what 2 regions is the skeleton divided into?
The axial and appendicular.
The process of bone formation is also referred to as ____?
Ossification.
Which two minerals are stored in major quantities in bone tissue?
Calcium & Phosphorous.
Which bone is that largest that makes up the hip bone?
ilium.
What section is the largest and strongest of the vertebral column?
The lumbar.
