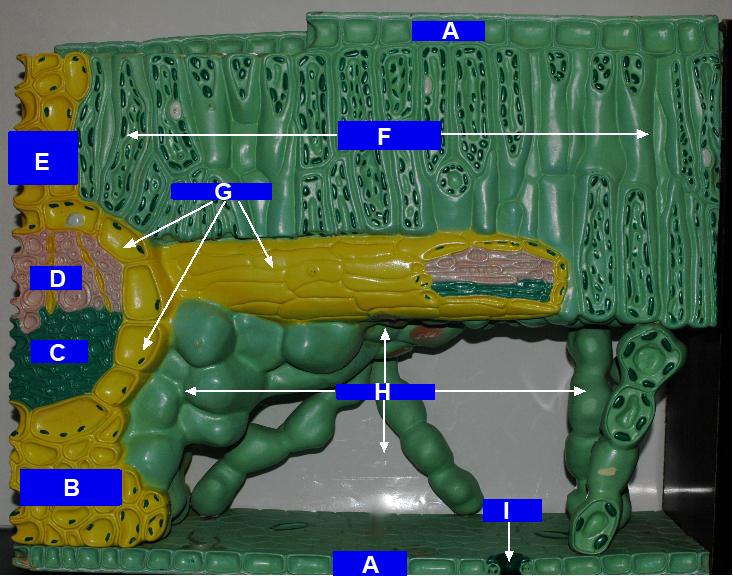

What is this an image of?
dicot leaf (model)
Name label A
epidermis
name label B
bundle sheath extension
name label c
phloem
name label d
xylem
name label e
bundle sheath extension
name label f
palisade layer
name label g
bundle sheath
name label h
spongy layer
name label i
stoma

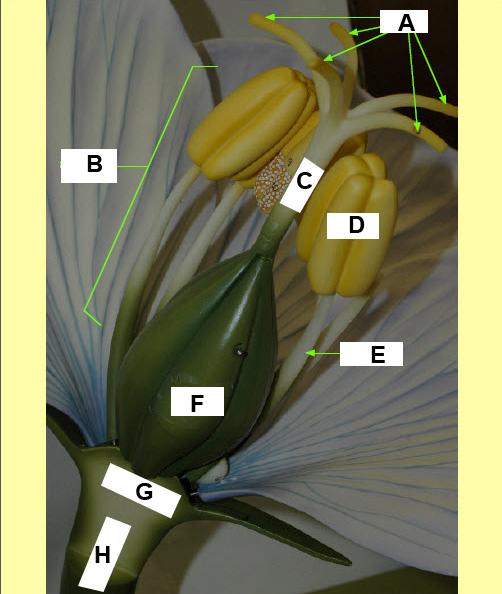

What is this an image of?
flower (model)
name label a
stigma
name label b
stamen
name label c
style
name label d
anther
name label e
filament
name label f
ovary
name label g
receptacle
name label h
pedicle
What is this an image of?
monocot stem (model)
name label a
xylem
name label b
phloem
name label c
sieve cell
name label d
companion cell
name label e
sclerenchyma
name label f
epidermis
What is this an image of?
woody dicot leaf (model)
name label a
cork
name label b
lenticel
name label c
phloem ray
name label d
epidermis
name label e
phloem
name label f
vascular cambium
name label g
xylem rays
name label h
xylem
what is this a slide of?
leaf epidermis
name label a
guard cell
name label b
stoma
what is this a slide of?
dicot leaf (section cut)
name label a
vascular bundle
name label b
epidermis
name label c
palisade layer
name label d
spongy layer
name label e
epidermis
name label f
phloem
name label g
xylem
name label h
stoma
what is this a slide of?
monocot leaf
name label a
epidermis
name label b
sclerenchymal cells
name label c
phloem
name label d
xylem
name label e
stoma
name label f
bulliform cells
name label g
air space (proto xylem)
name label h
vascular bundles
what is this a slide of?
monocot stem
name label a
vascular bundle
name label b
epidermis
what is this a slide of?
non-woody dicot stem
name label a
xylem
name label b
cortex
name label c
phloem
name label d
schlerenchymal cells
what is this a slide of?
woody dicot stem
name label a
phloem ray
name label b
vascular cambium
name label c
phloem
name label d
xylem
name label e
pith
what is this an image of?
woody dicot stem
name label a
cork
name label b
phloem ray
name label c
phloem
name label d
xylem
name label e
bark
What is the type of tissue that occupies all the regions between the epidermal and vascular tissues?
ground tissue
What is the type of tissue made up of perpetual embryonic (growth) tissues?
meristem
What is the type of meristem tissue that causes the plant to grow in length?
apical meristems
What is the type of meristem tissue that causes the plant to grow in girth?
lateral meristems
What is the type of lateral meristem tissue that produces new xylem, new phloem, and new rays?
vascular cambium
What is the type of lateral meristem tissue that replaces epidermis with a thick, tough covering (cork)?
cork cambium
Term for all tissues exterior to the vascular cambium
bark
Term for cork cambium plus the cork to its exterior
periderm
Term for openings in the bark that allow for gas transport necessary in local cellular respiration
lenticels
Term for the supporting parenchymal cells that store starches and provide radial transfer of water and minerals
xylem and phloem rays
The mesophyll of the leaf is made up of what two layers?
palisade layer (where most photosynthesis occurs)
spongy layer
bundle of xylem and phloem in a leaf is called
vascular bundle or vein
Name for the yellow ring of collenchymal cells directly surrounding the xylem and phloem. It bunches up the xylem and phloem together
bundle sheath
the yellow column of mainly collenchymal cells above and below the vascular bundle that anchors the vein to the surrounding tissue
bundle sheath extension
