1
card image

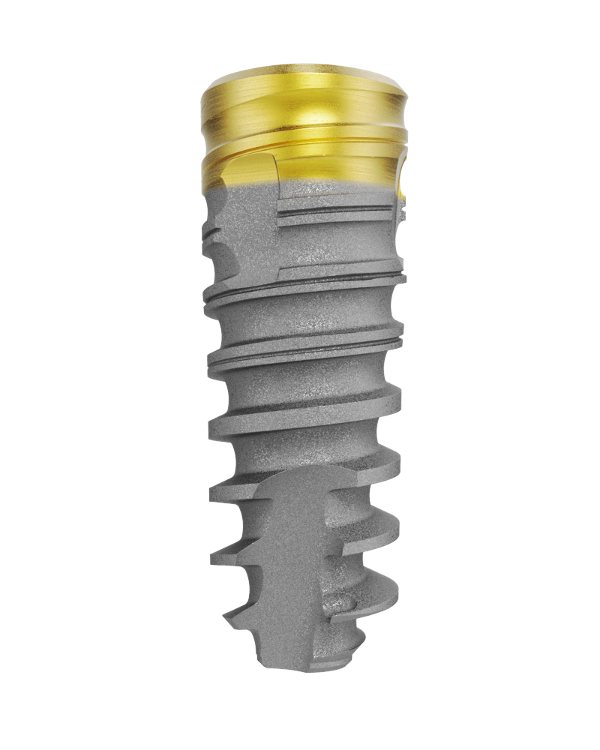

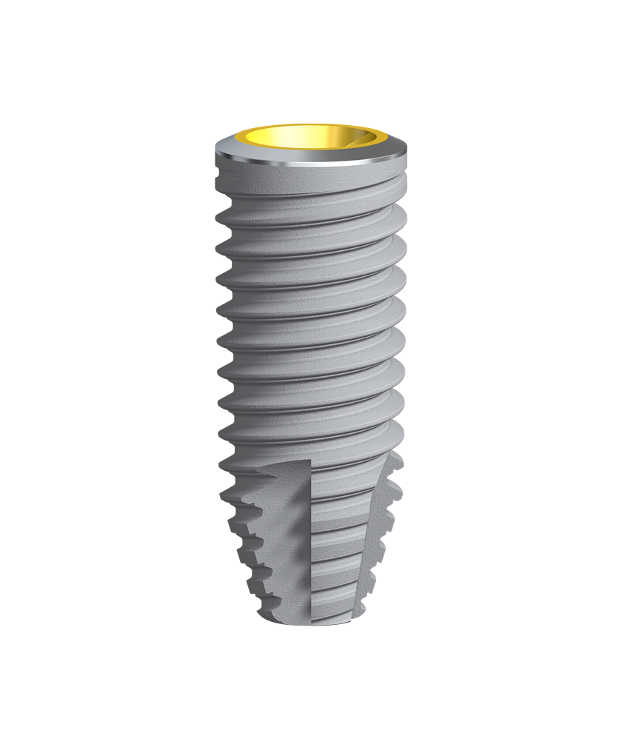

Nobel Biocare N1 TCC TiUltra

  • Connection: trioval conical connection (TCC)
  • Geometry: parallel
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUltra)
  • Diameters: 3.5, 4.0, 4.8 mm
  • Lengths: 7, 9, 11, 13, 15 mm

2
card image

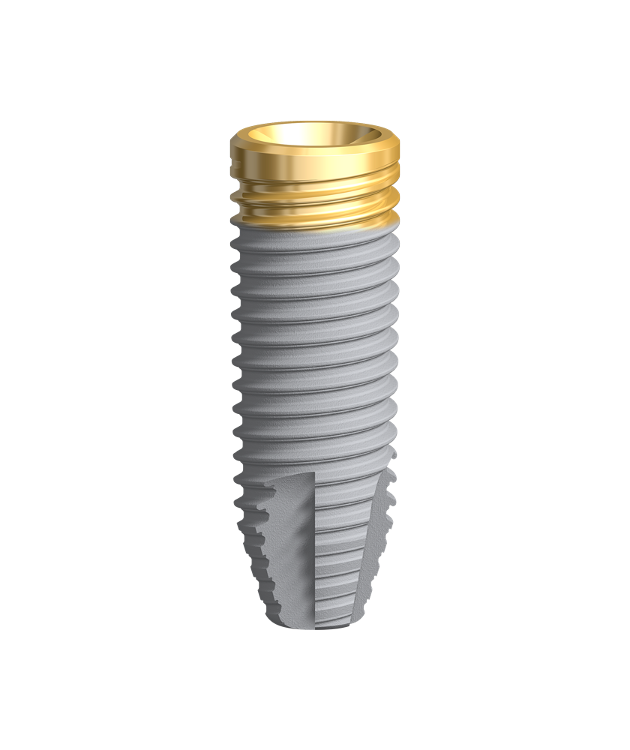

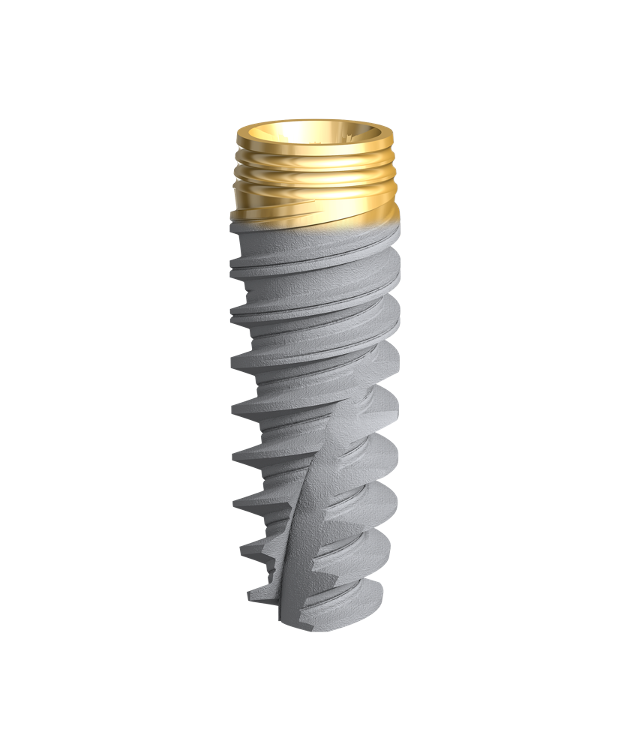

NobelActive CC TiUltra

  • Connection: internal conical connection (CC)
  • Geometry: parallel, reverse tapered collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUltra)
  • Diameters: 3.0, 3.5, 4.3, 5.0, 5.5 mm
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

3
card image

NobelParallel CC TiUltra

  • Connection: internal conical connection (CC)
  • Geometry: parallel
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUltra)
  • Diameters: 3.75, 4.3, 5.0, 5.5 mm
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

4
card image

NobelReplace CC TiUltra

  • Connection: internal conical connection (CC)
  • Geometry: tapered (Replace)
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUltra)
  • Diameters: 3.5, 4.3, 5.0 mm
  • Lengths: 8, 10, 11.5 13, 16 mm

5
card image

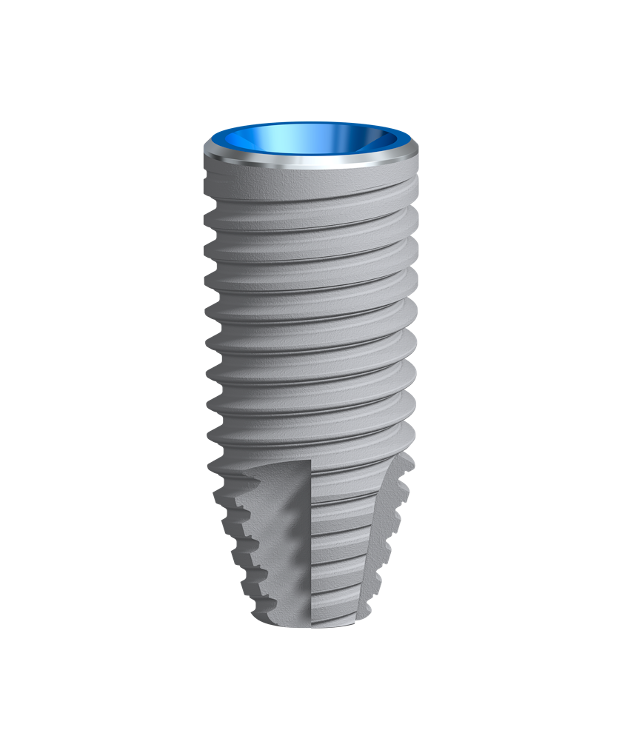

NobelParallel CC TiUnite

  • Connection: internal conical connection (CC)
  • Geometry: parallel
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 5.5 (blue)
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

6
card image

NobelParallel CC TiUnite

  • Connection: internal conical connection (CC)
  • Geometry: parallel
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 4.3 or 5.0 (yellow)
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

7
card image

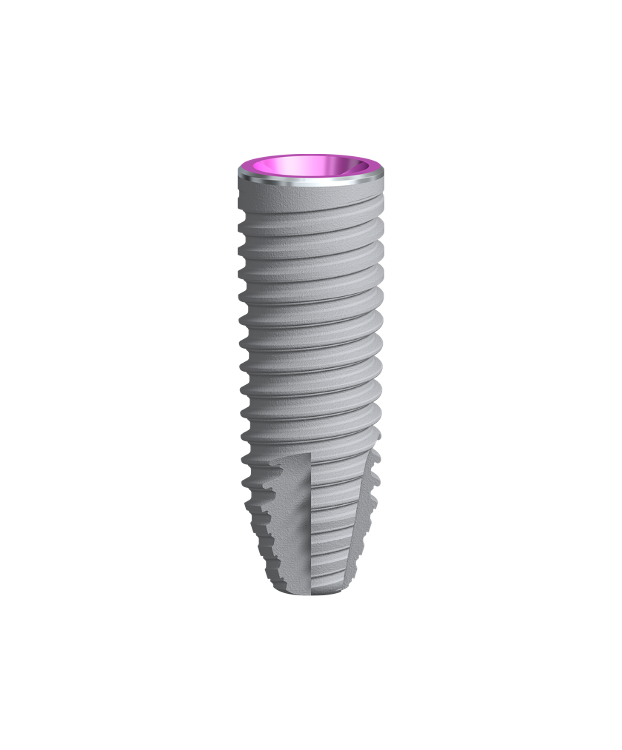

NobelParallel CC TiUnite

  • Connection: internal conical connection (CC)
  • Geometry: parallel
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.75 (pink)
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

8
card image

NobelReplace Conical Connection TiUltra

  • Connection: internal conical connection (CC)
  • Geometry: tapered
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUltra)
  • Diameter: 3.5, 4.3, 5.0 mm
  • Lengths: 8, 10, 11.5, 13, 16 mm

9
card image

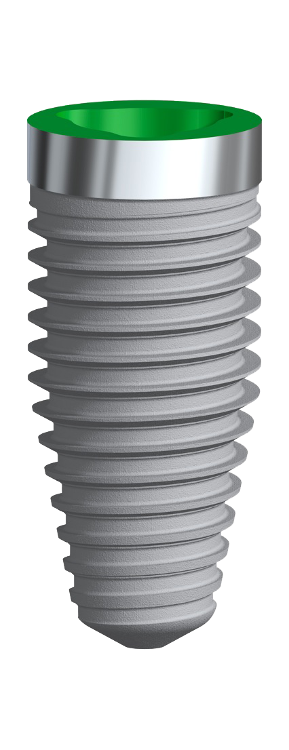

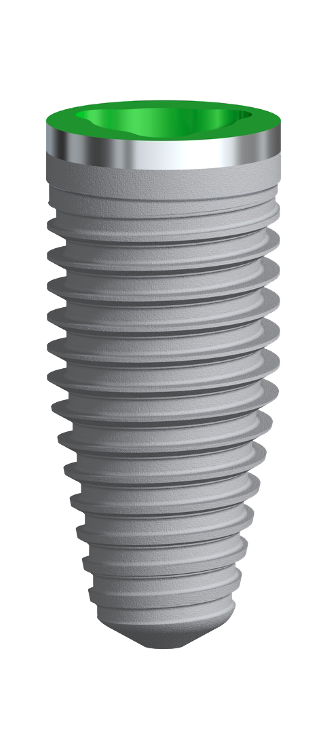

Replace Select Tapered TiUnite

  • Connection: internal tri-channel (Select)
  • Geometry: tapered
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 6.0 mm (green)
  • Lengths: 8, 10, 11.5, 13, 16 mm

10
card image

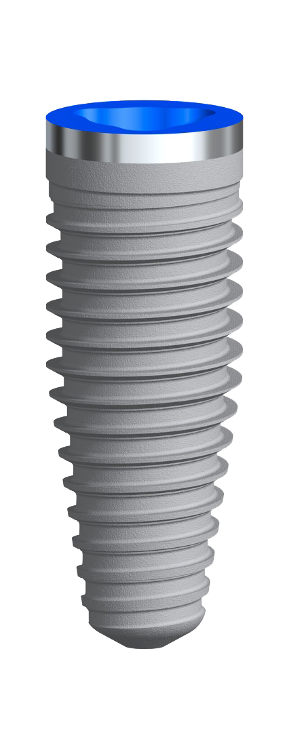

Replace Select Tapered TiUnite

  • Connection: internal tri-channel (Select)
  • Geometry: tapered
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 5.0 mm (blue)
  • Lengths: 8, 10, 11.5, 13, 16 mm

11
card image

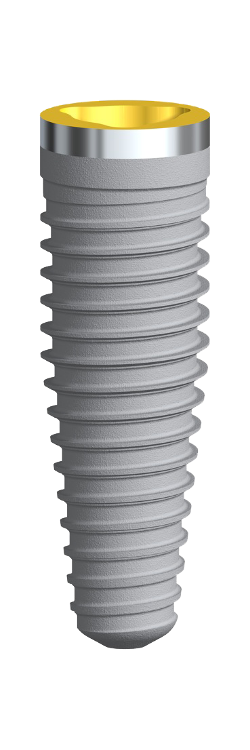

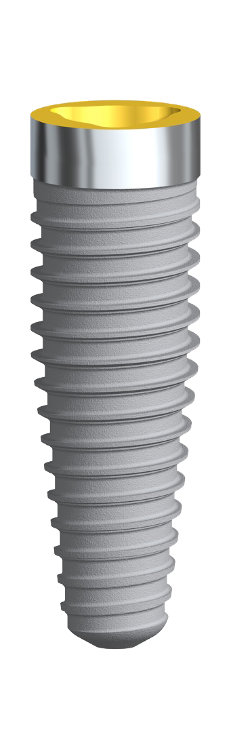

Replace Select Tapered TiUnite

  • Connection: internal tri-channel (Select)
  • Geometry: tapered
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 4.3 mm (yellow)
  • Lengths: 8, 10, 11.5, 13, 16 mm

12
card image

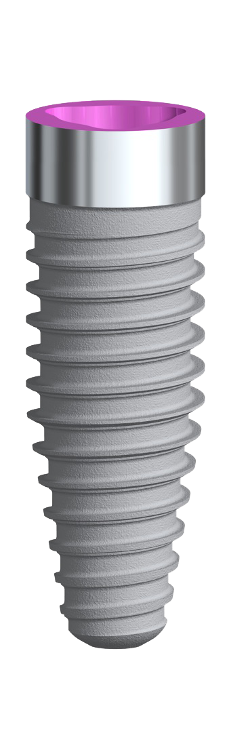

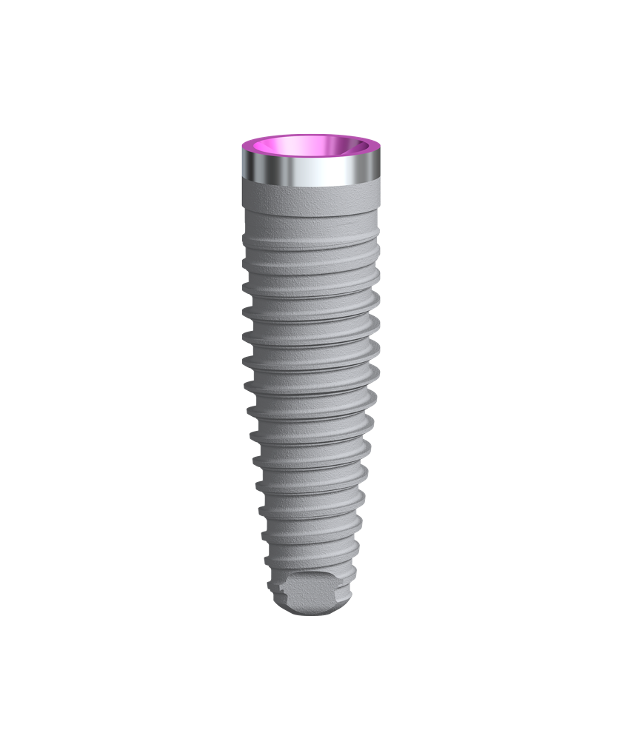

Replace Select Tapered TiUnite

  • Connection: internal tri-channel (Select)
  • Geometry: tapered
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.5 mm (pink)
  • Lengths: 8, 10, 11.5, 13, 16 mm

13
card image

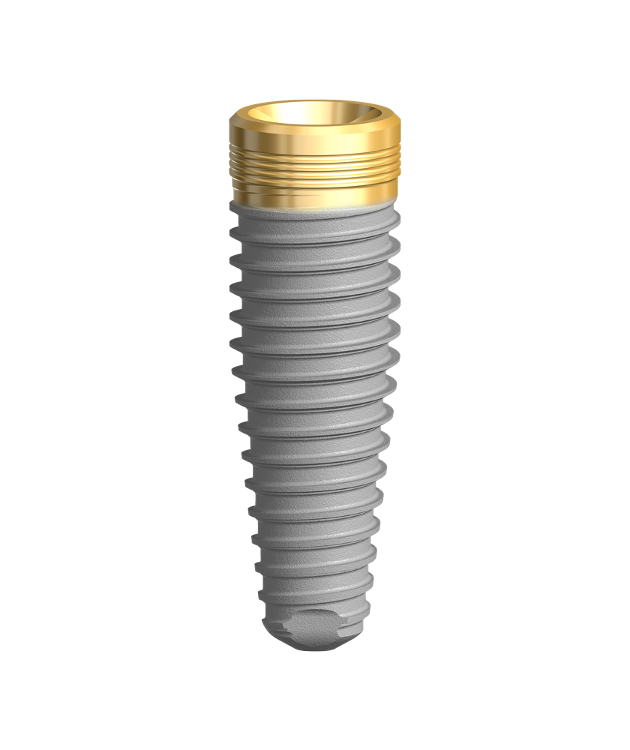

NobelReplace CC PMC

  • Connection: internal conical connection (CC)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 4.3 or 5.0 mm (yellow)
  • Lengths: 8, 10, 11.5, 13, 16 mm

14
card image

NobelReplace CC PMC

  • Connection: internal conical connection (CC)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.5 mm (pink)
  • Lengths: 8, 10, 11.5, 13, 16 mm

15
card image

Replace Select Tapered PMC

  • Connection: internal tri-channel (Select)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.5 mm (pink)
  • Lengths: 8, 10, 11.5, 13, 16 mm

16
card image

Replace Select Tapered PMC

  • Connection: internal tri-channel (Select)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 4.3 mm (yellow)
  • Lengths: 8, 10, 11.5, 13, 16 mm

17
card image

Replace Select Tapered PMC

  • Connection: internal tri-channel (Select)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 5.0 mm (blue)
  • Lengths: 8, 10, 11.5, 13, 16 mm

18
card image

Replace Select Tapered PMC

  • Connection: internal tri-channel (Select)
  • Geometry: tapered, partially machined collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 6.0 mm (green)
  • Lengths: 8, 10, 11.5, 13, 16 mm

19
card image

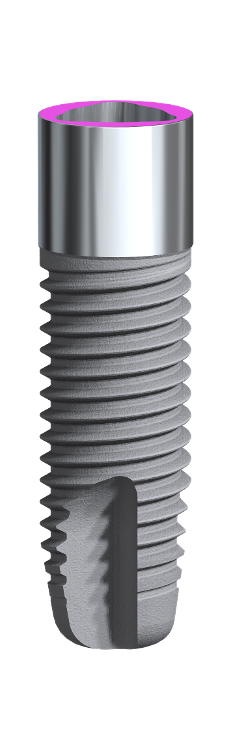

Replace Select TC

  • Connection: internal tri-channel (Select)
  • Geometry: parallel, tissue collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.5 mm (pink)
  • Lengths:(7+3), (10+3), (13+3), (15+3) mm

20
card image

Replace Select TC

  • Connection: internal tri-channel (Select)
  • Geometry: parallel, tissue collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 4.0 mm (yellow)
  • Lengths:(7+3), (10+3), (13+3), (15+3) mm

21
card image

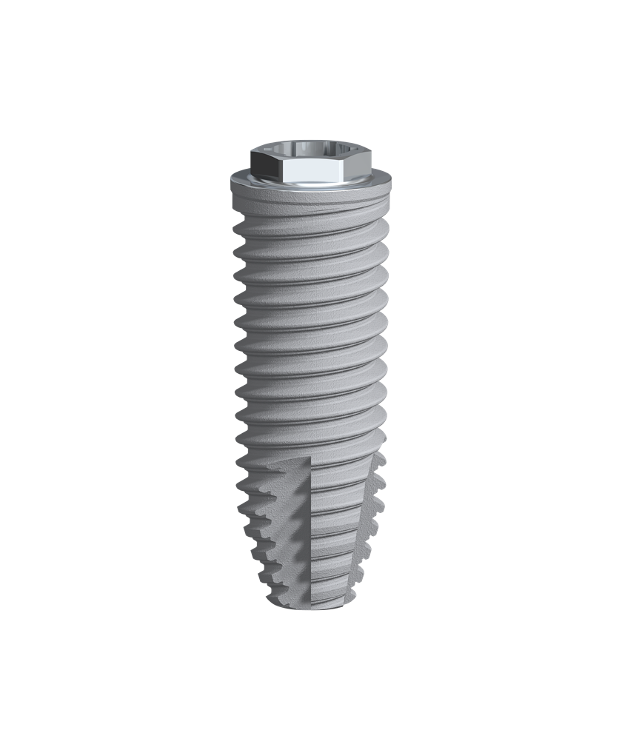

NobelSpeedy Groovy

  • Connection: external hexagon
  • Geometry: parallel, tissue collar
  • Material: titanium (CP, grade 4)
  • Surface: multizone, anodized (TiUnite)
  • Diameter: 3.5, 4.1, 5.1 mm
  • Lengths: 7, 8.5, 10, 11.5, 13, 15, 18 mm

22
card image

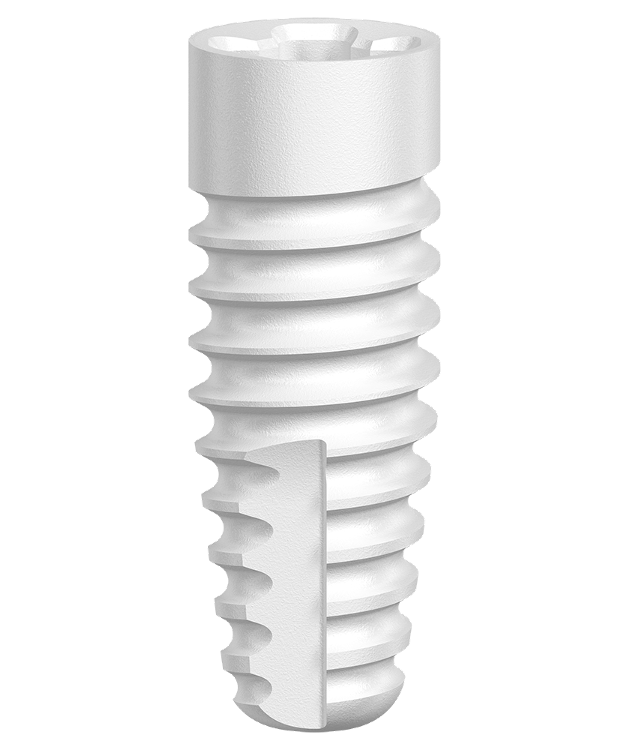

NobelPearl Tapered

  • Connection: external hexagon
  • Geometry: parallel, tissue collar
  • Material: zirconia
  • Surface: sandblasted, acid-etched
  • Diameter: 3.5, 4.2, 5.5 mm
  • Lengths: 8, 10, 12, 14 mm

23
card image

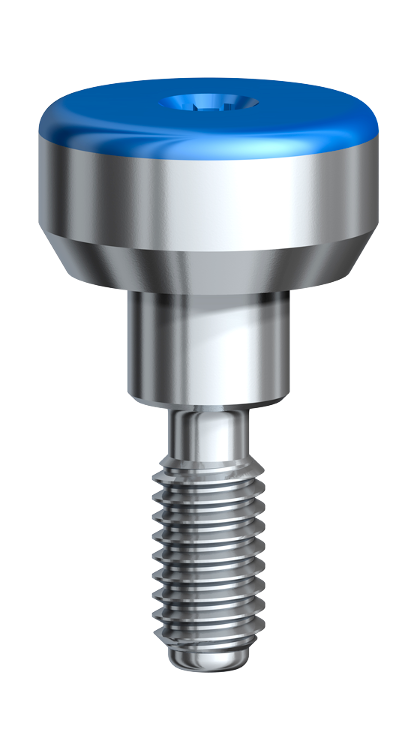

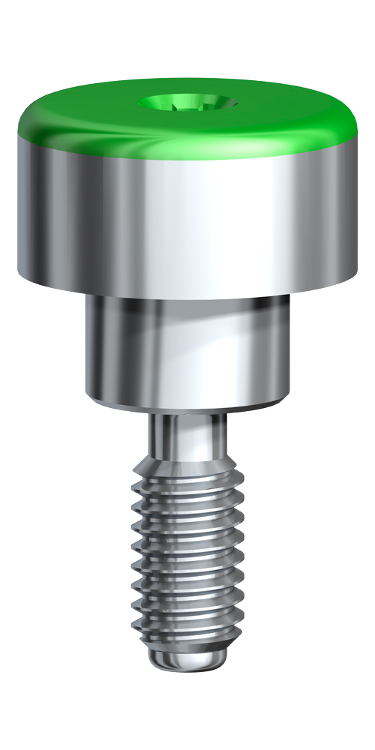

Healing Abutment Brånemark System

  • Connection: external hexagon
  • Material: titanium alloy (Ti-6Al-4V)
  • Engagement: non-engaging

24
card image

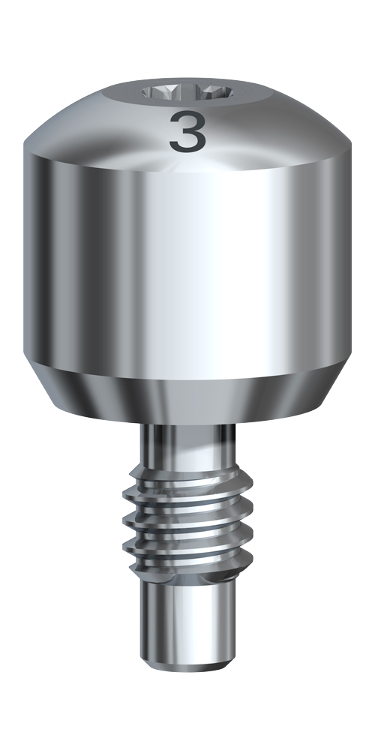

Healing Abutment NobelReplace

  • Connection: internal tri-channel
  • Material: titanium alloy (Ti-6Al-4V)
  • Diameter: 3.5 mm
  • Height: 3 mm or 5 mm
  • Engagement: non-engaging

25
card image

Healing Abutment NobelReplace

  • Connection: internal tri-channel
  • Material: titanium alloy (Ti-6Al-4V)
  • Diameter: 6 mm
  • Height: 3 mm or 5 mm
  • Engagement: non-engaging

26
card image

Healing Abutment NobelReplace

  • Connection: internal tri-channel
  • Material: titanium alloy (Ti-6Al-4V)
  • Diameter: 6 mm
  • Height: 3 mm or 5 mm
  • Engagement: non-engaging

27
card image

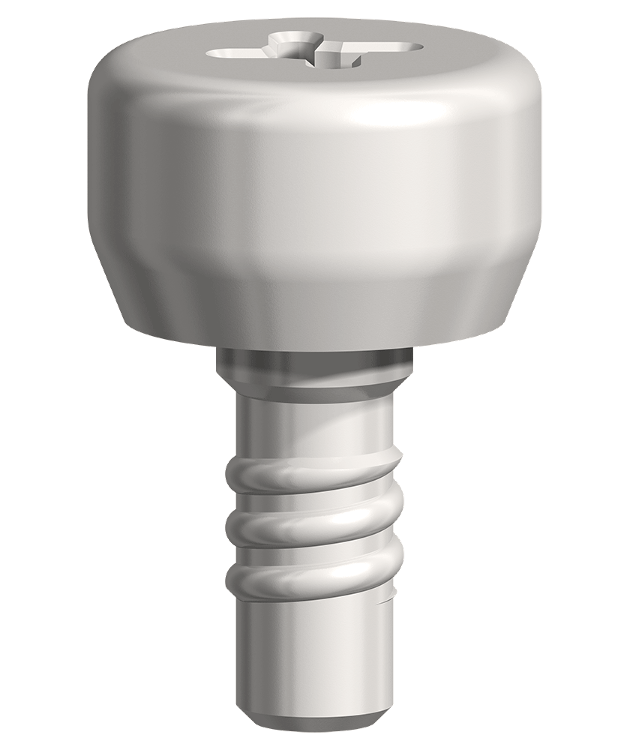

NobelPearl Healing Abutment

  • Connection: inter-X
  • Material: polyetheretherketone (PEEK)
  • Diameter: 3.5, 4.2, 5.5 mm
  • Height: 3 mm or 4 mm
  • Engagement: non-engaging
